Fastest possible 68060 power for the QL can be small:

The MiniQ60 Prototype

MiniQ60 / 80 MHz

Portable Motorola 68LC060 computer running at 80 MHz
Based on the standard Q60 mainboard
Unreached 160.0 BogoMIPS performance under QDOS and SMSQ/E
Sinclair QL compatible
Operating system in ROM. Boot-time just a few seconds

80 MB RAM upgradable to 128 MB
Highspeed 32 bit graphics
65536 colors at 1024x512 pixel resolution
Original QL graphic modes
Stereo Sound output

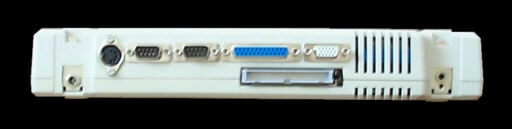

2 Serial ports with 115200 Baud, Parallel Port, Joystick port

Harddisk 10 GB, IBM
Floppy 1.44 MB
External IDE connector for CD-RW drives
Small power consumption

68LC060 CPU active under normal conditions
80 MB DRAM active
Harddisk attached and active
Floppy attached, inactive

Average total Power consumption = 12W

External supply from AC adaptor or battery
Finally SILENCE! No fans, no noise. A Q60 is quiet.

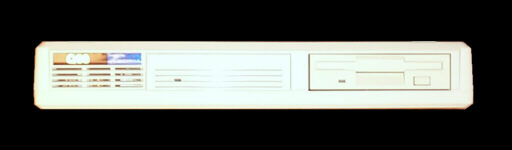

Mini case, thanks to Keith Mitchell

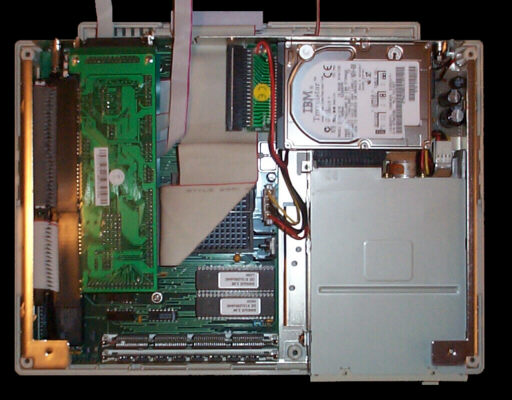

Click on images for larger pictures. Or click here to have a peek inside!

Can run QDOS Classic, SMSQ/E and 68k Linux

This system is a prototype to show how small, quiet and low-power consuming a system built around a normal Q60 mainboard can be. Except the case, special mechanical construction and power supply, there is no difference to the standard Q60 desktop systems.
